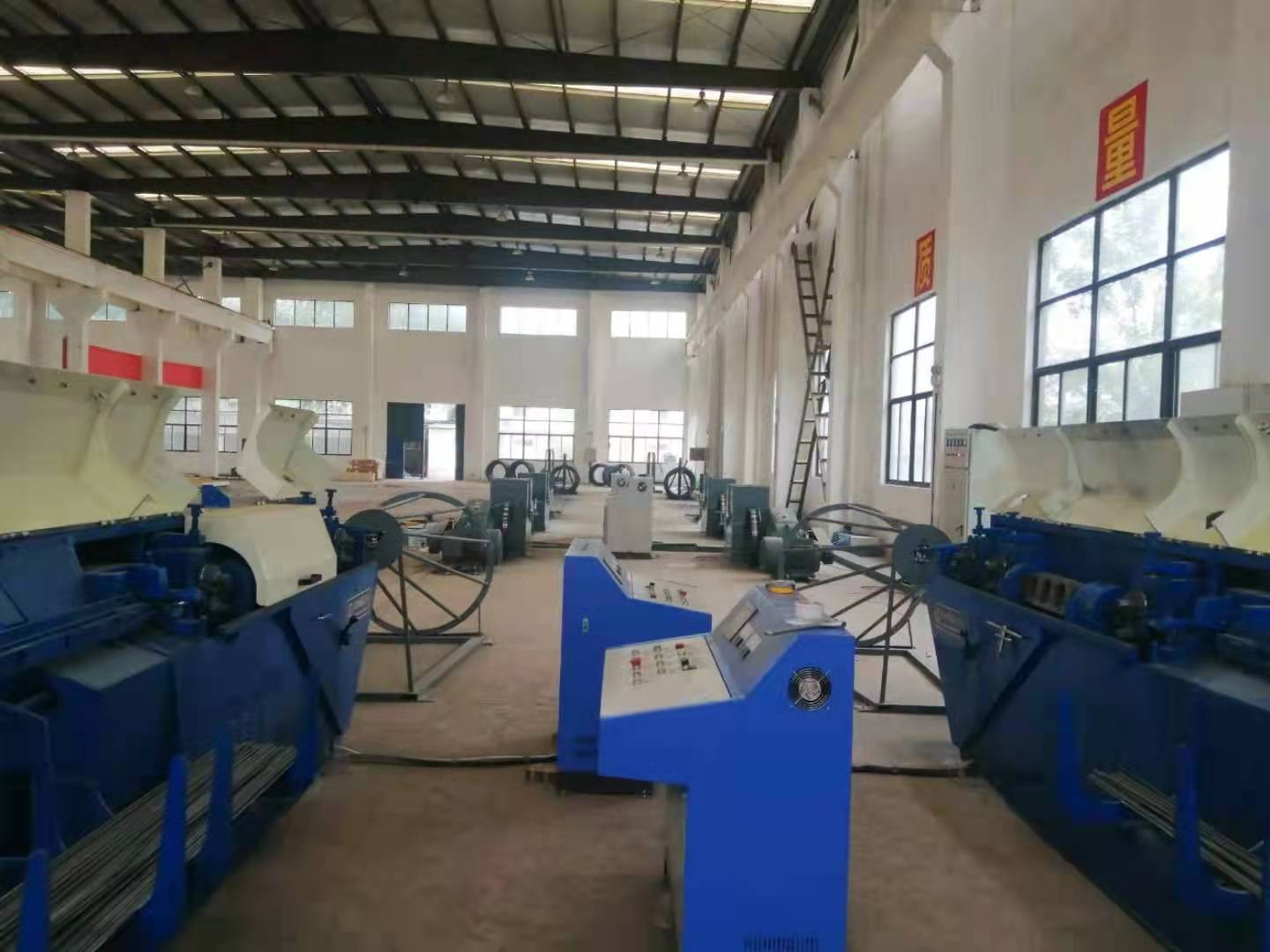

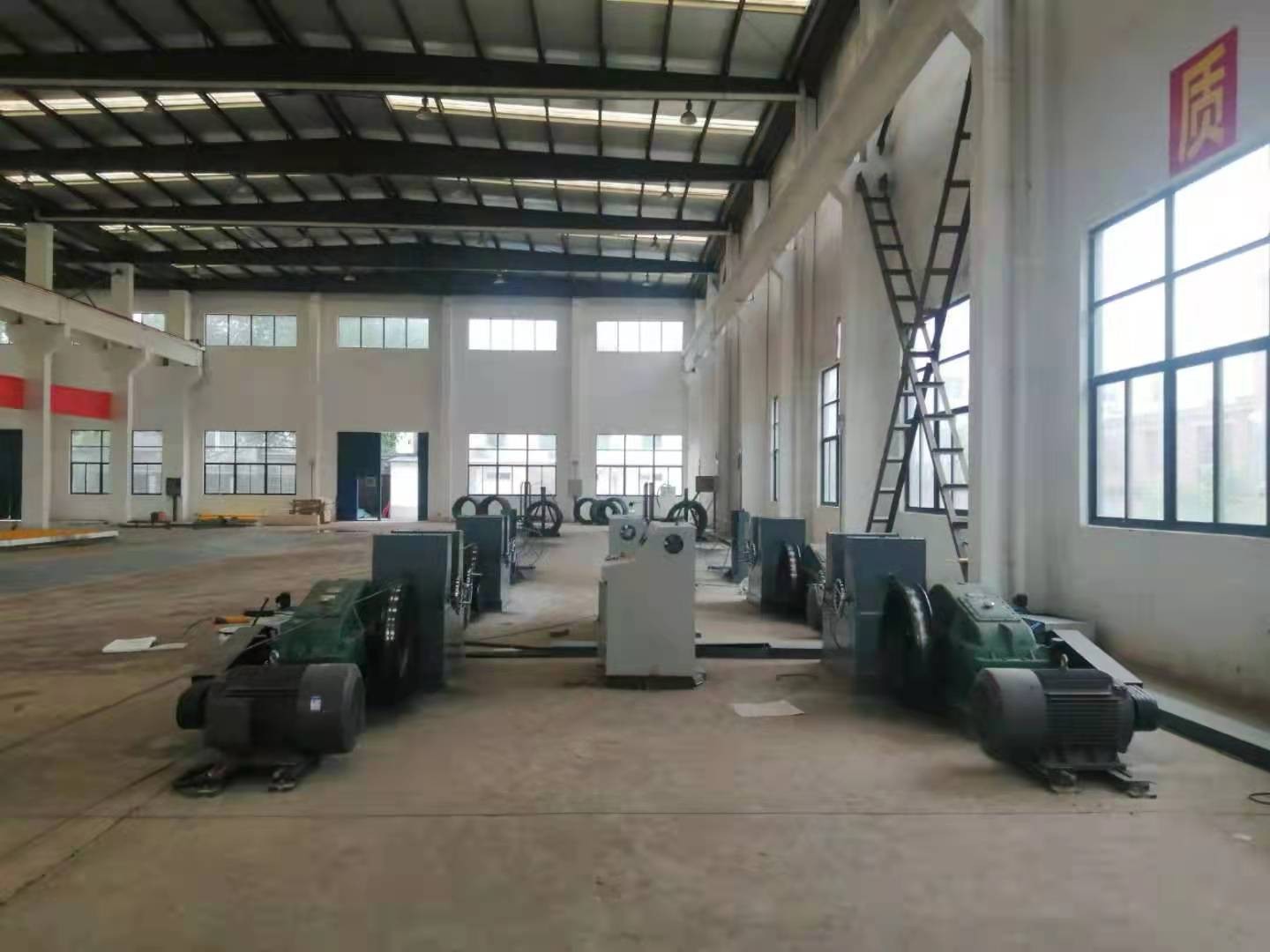

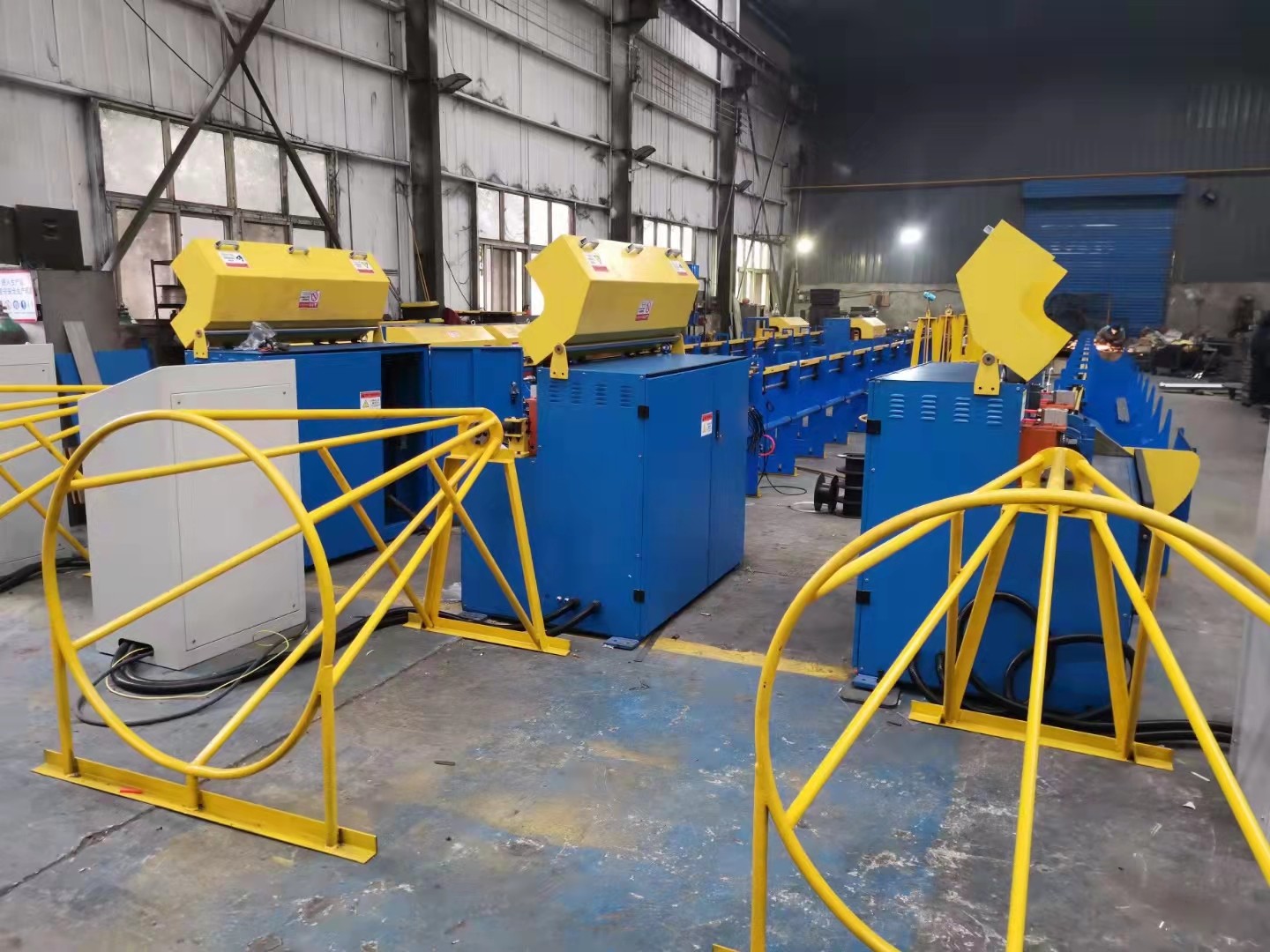

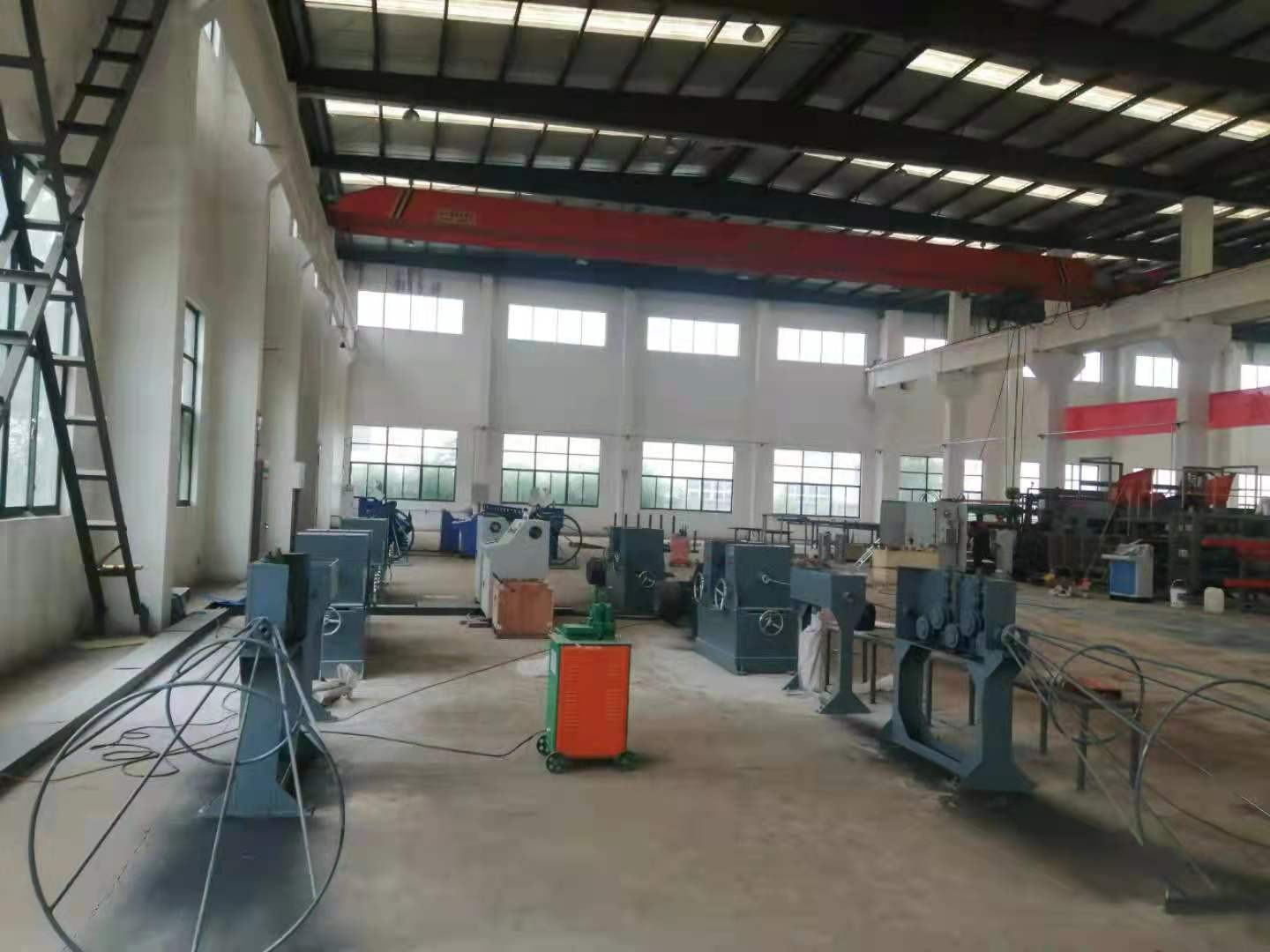

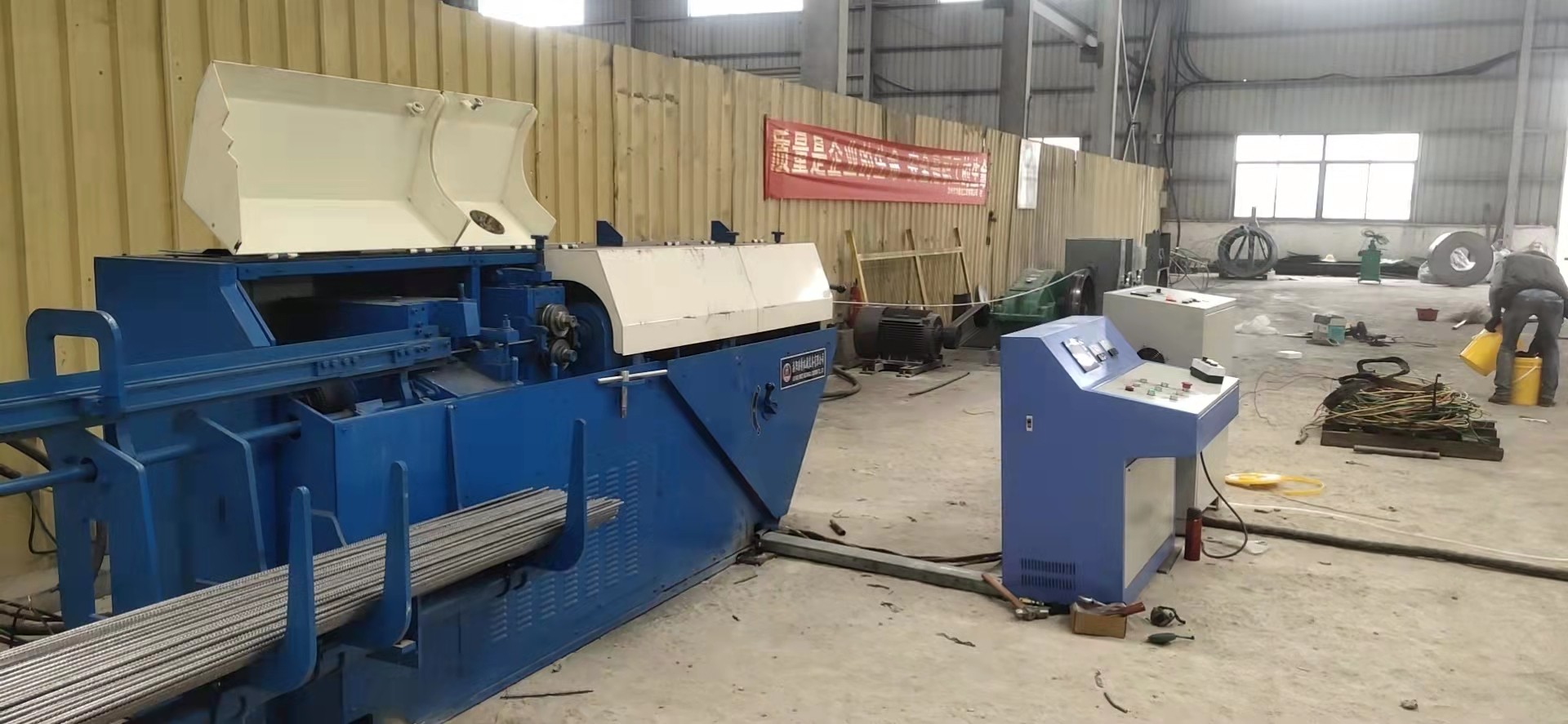

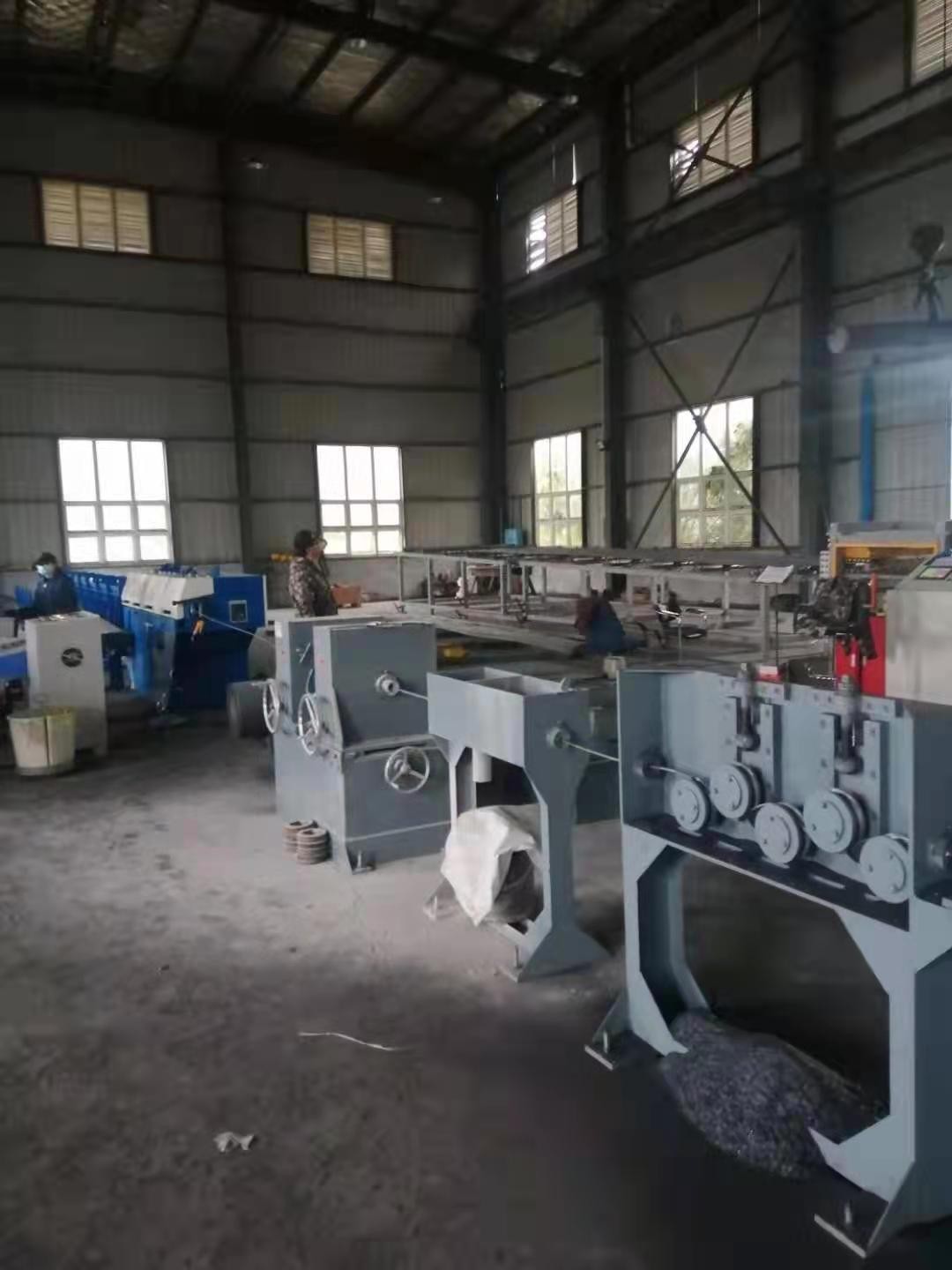

Double rolling on-line straightening unit (with Luoyang straightening machine)
The production line of ZT series cold rolled ribbed steel bar equipment is to make the hot rolled round steel bar into the steel bar with crescent transverse ribs on three sides by cold rolling, and then straighten, cut, blank and process it into the cold rolled ribbed steel bar for cast-in-place or prefabricated construction engineering.
ZTThe production line of series cold-rolled ribbed steel bar equipment is to cold-roll the hot-rolled round steel bar, then cold-roll its surface to form a steel bar with crescent transverse ribs on three sides, and then straighten, cut, blank and process it into the cold-rolled ribbed steel bar directly used in cast-in-place or prefabricated construction engineering. Product complianceGB13788—2000Standard.
Name | Unit | Technical parameters | |
Online straightening | Online straightening | ||
Model | Lz15000t | Lz20000t | |
Diameter of base metal to be processed | Millimeter | φ6.5-10 | φ6.5-12 |
Finished product size | mm | φ5-9 | φ5-11 |
Linear velocity | M/min | 120 | 120 |
Predetermined length | Meters | 2～90 | |
Length of blanking slideway | Meters | 9-12 | 9-12 |
Speed regulation | Frequency conversion | Frequency conversion | |
Length of finished conveyor belt | Meters | Can be equipped separately as required | Can be equipped separately as required |
Cut off error | mm | ±2.5 | ±2.5 |
Total power | Kw | ～65 | ～75 |
Total weight | Kg | ～8000 | ～11000 |
Working area | Length × width × height | 40×4×2 | 45×4×2 |
m | Produce 12 meters | Produce 12 meters | |
Pusher | Taiwan | Have | Have |
Butt welding machine | Un-16 | 1 | 1 |
Rolling times | Kg/kg | 2 | 2 |
Sheet size | cm | φ150 | φ150 |
Wire arrangement method | Taiwan | ||
Take-up weight | Taiwan | ||
Wire take-up | Taiwan | ||
Online straightening machine | Taiwan | 1 | 1 |
Descaling machine | Set | 1 | 1 |
Stress relieving | 1 | 1 | |
Operations Console | 1 | 1 | |
Cooling system | 1 | 1 | |
Wire drawing machine | Kilogram | 750Type | 750Type |
Number of units | Taiwan | 1 | 1 |
Rolling mill | 2A rolling mill | 2A rolling mill | |
According to the output of φ7mm reinforcement | Every hour | 2174Kilogram | 2174Kilogram |
According to the output of φ10mm reinforcement | Every hour | ||
Operator | Name | 2 | 2 |
Note: Please consult the +86 18932797253 for details.
Quick Answer
This page introduces a cold rolled ribbed bar machine or related rebar processing machine for steel bar producers, mesh factories and construction material manufacturers. Share your raw material diameter, required finished bar diameter, target capacity, voltage and workshop conditions to receive a suitable machine configuration and quotation.
Machine at a Glance
| Product | Double rolling on-line straightening unit (with Luoyang straightening machine) |
|---|---|
| Manufacturer | Cangzhou Jintongcheng Machinery Co., Ltd |
| Machine Type | Cold rolling and rib forming equipment |
| Application | The production line of ZT series cold rolled ribbed steel bar equipment is to make the hot rolled round steel bar into the steel bar with crescent transverse ribs on three sides by cold rolling, and then straighten, cut, blank and process it into the cold rolled ribbed steel bar for cast-in-place or prefabricated construction engineering. |
| Model | Contact us for configuration |
| Raw Material | Contact us for configuration |
| Input Diameter | Contact us for configuration |
| Finished Diameter | Contact us for configuration |
| Production Speed | Contact us for configuration |
| Capacity | Contact us for configuration |
Applications
- Construction reinforcement bar production
- Welded wire mesh factories
- Steel processing plants
- Building material manufacturers
- Rebar processing centers
- Steel distributors
- Precast concrete factories
How the Production Line Works
- Raw wire or steel bar preparation
- Descaling and lubrication according to line configuration
- Cold rolling and rib forming
- Straightening, cutting or coiling according to the required finished product
- Finished ribbed bar inspection and bundling
Production Line Configuration
Contact us for configuration. Common modules may include descaling, rolling mill, rib forming, PLC control, straightening, cutting, coiling and cooling systems depending on the ordered machine.
Technical & Buying Questions
What is this machine?
This machine is used to cold roll, rib, straighten, cut or coil steel bar or wire for construction reinforcement and mesh production. The exact output range depends on the selected configuration and tooling.
Who is this machine for?
It is designed for steel bar producers, welded mesh factories, construction material manufacturers, steel processing plants, rebar processing centers and equipment distributors.
How to choose the machine?
Choose by raw material diameter, finished diameter, two-rib or three-rib profile, target capacity, local voltage, workshop dimensions, straight bar or coil output, automation level and after-sales requirements.
